DSP - SLF - Single Ferrule Loop Insert

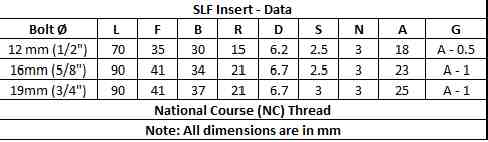

The SLF insert - is a versatile insert commonly used on applications which include: structural connections, pipe hanger connection and to suspend electrical and mechanical equipment. The table has all dimensional and bolt diameter information. The inserts are available in a electro-galvanized finish.
Safe Working Loads are based on 35 MPa concrete and a 3:1 safety factor.
A) Safe Working load is based on the insert set 12mm from concrete surface.
B) Minimum edge distance is 125 mm.
Safe Working Load (Tension)
- 12mm (1/2") 2000 lbs or 8.9 kN
- 16mm (5/8") 2300 lbs or 10.2 kN
- 19mm (3/4") 2400 lbs or 10.7 kN
DSP - 25mm - Ferrule Hooked - Insert - Thin Slab Design

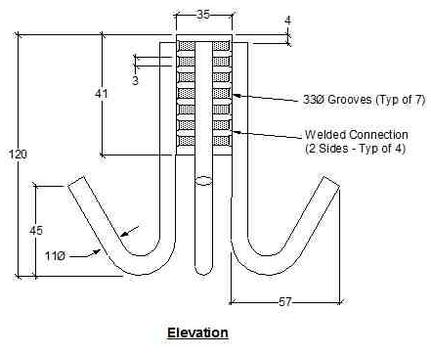

The Hooked Ferrule insert - is a versatile insert commonly used on applications which include: structural connections, cable pull connnections and to suspend electrical and mechanical equipment. The attached drawing has all dimensional and bolt diameter information. The inserts are available in a electro-galvanized finish.
Safe Working Loads are based on 35 MPa concrete and a 3:1 safety factor.
A) Safe Working load is based on the insert set 12mm from concrete surface.
B) Minimum edge distance is 225 mm.
Safe Working Load (Tension)
- 25mm (1") 4500 lbs or 20 kN
==================================================================================================
==================================================================================================
